Most people think that Betamax and Betacam are the same. But in reality, Sony developed two completely different video recording formats.

best betamax to dvd service

In order to gain a better understanding of the differences between these two videotape formats and how they operate, we will discuss some key points about both.

What is Betamax?

Betamax
Museum of Obsolete Media, CC BY-SA 4.0, via Wikimedia Commons

Betamax (Beta) is a video tape developed by Sony and released to the public in 1975. It was also the first consumer-level video cassette recording format.

Most Betamax tapes could only record up to one hour of footage, but there were some that could record up to five hours. Unfortunately for Betamax, this was still considered short compared to VHS tapes that could record over 10 hours. But what made Betamax stand out from other tapes is the better video and audio quality.

Although Betamax tape was better in video quality, smaller size, etc., VHS tapes were still a more affordable option on the market. The last Betamax tape version was ED-Beta (Extended Definition), which hit the market in 1988 and had a resolution quality comparable to DVDs.

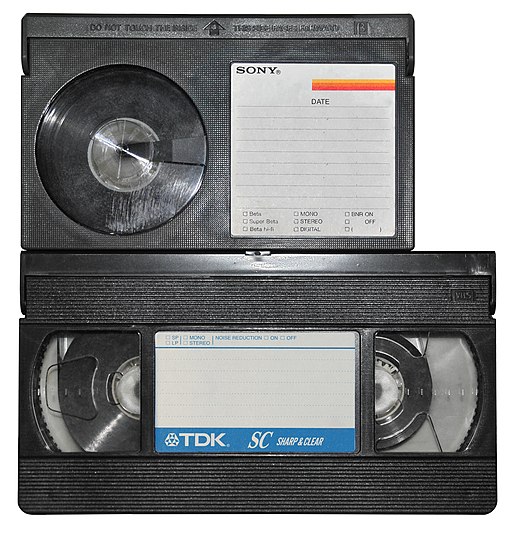

betamax compared to vhs
Ya, saya inBaliTimur, CC BY-SA 2.0, via Wikimedia Commons

What is Betacam?

Betacam tapes
User Colin99 on en.wikipedia, Copyrighted free use, via Wikimedia Commons

Betacam, also released by Sony, came out after Betamax in 1982 as a professional version of Betamax for professional video recording. Because of the better video and audio quality, it quickly became the most used videotape format, especially for news and journalism.

Its half-inch magnetic film tape with high-capacity spools within cartridges came in two different sizes S (for short) and L (for long). Betacam camcorders were designed to accept only S size, while TV studios could play both S and L tapes.

Betacam videotape did not last long and was replaced with newer versions such as:

  • Betacam SP (for professional use)
  • Digital Betacam
  • Betacam SX
  • MPEG IMX
  • HDCAM/HDCAM SR

Overview of The Some Key Features of Betamax and Betacam

Betamax:

  • It offers high-quality video and audio with a resolution of approximately 250 lines and a high signal-to-noise ratio.
  • Betamax used small, portable cassettes for recording and playing, making them convenient for home TVs.

Betacam:

  • Betacam offers high-quality video and audio with a resolution of approximately 400 lines with a 50dB of signal-to-noise ratio.
  • It has a bigger videocassette size which allows longer recording times.
  • It’s designed to be used in the broadcast industry, such as in TV studios and other professional applications.
  • Compatible with other professional video formats like 1-inch Type C.

How Do Betamax and Betacam Tapes Work

Although Betamax and Betacam looked almost the same, the way they worked was different.

Betamax uses composite video, which is lower in video quality and slower in recording. On the other hand, Betacam uses component video, which is recorded at a higher tape speed and supports HD resolution.

Resolution

Betamax tapes have a resolution of 333×486. The first iteration of Betacam tapes had a resolution of 387×486, while the newer variations, such as Betacam SP, had a resolution approximately equivalent to 720×486 for NTSC and 720×576 for PAL.

Dimensions and Design

Betacam case dimensions are 10.4 x 6.2 x 1.2″ while Betamax videotape case dimensions are 61⁄7 × 3 3⁄4 × 1 inch. Both Betamax and Betacam use a half-inch (1/2) film.

The design of Betamax and Betacam is unique compared to other videotapes at that time. In most cases, both types of tapes have one visible film spool and one invisible, which makes these tapes unique compared to VHS, which has both film spools visible.

Beta Machines and Compatibility

Although both tapes look similar, you won’t be able to play them back with one VCR. If you insert the wrong type of tape in a Beta machine, the picture will either be blank or white noise. In addition, neither of these video formats are interchangeable. For the VCR to know which format is inserted, Sony integrated dedicated holes on the bottom of the various video cassette cases, which allowed the video recorder to tell them apart.

How to Watch Old Betamax and Betacam Cassettes

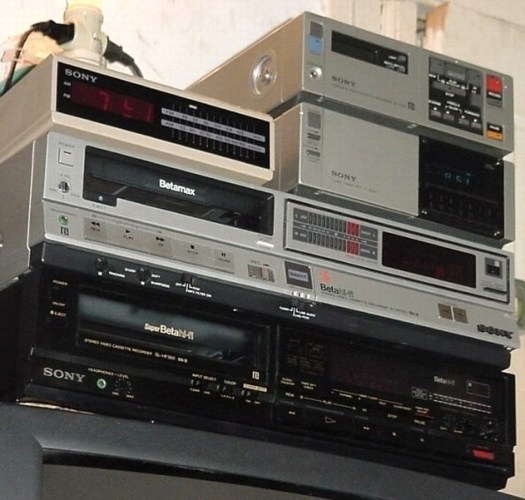

Betamax vcr
Franny Wentzel, CC BY-SA 3.0, via Wikimedia Commons

Because the format is outdated and requires a compatible VCR, you won’t be able to play it without one, but there is a way. You can have it sent and digitized with the help of a professional transfer service.

These transfer services are easy to use; you only need to send them your old Betamax or Betacam videocassette, and they will do the rest for you.

By digitizing the footage, you’ll save it from being disintegrated after being stored for a long time. That way, you won’t lose the footage, and you’ll be able to make as many copies as you’d like.

Note: Even though there are many transfer services today, not all can transfer Betamax and Betacam. So before sending your videotapes, ensure the service you pick accepts these formats.

What makes these services so good is the fact that some of them also offer repairs. So, for example, if you have broken film, case housing, or some sort of mechanical problem, they can repair it and make them playable again, allowing it to be transferred, and saved for future generations.

When footage is converted to digital format, professional staff members can bring the footage back to life in terms of quality, such as color correction, resolution, etc., resulting in the footage looking even better at the end of the process.

Betacam player
Tungd31, CC BY-SA 3.0, via Wikimedia Commons

You’re probably wondering how you can watch this footage. Well, depending on your chosen service, your Betamax and Betacam videocassettes can be converted to MP4 files and transferred to DVD, USB, cloud, external hard drive, etc. This way, you can watch footage on any modern device and share it online with your family and friends.

The cost of transferring videotapes to digital format depends on the service. The price can go from $14.99 up to $40 per single tape. Because of that, it’s worth doing the research before sending your tapes. However, if you want to skip all the research, you can check out our guide for the best Betamax to digital service to find the best one that suits your needs and price.

Conclusion

While both tapes offer high-quality video and audio capabilities, Betamax and Betacam were designed with different markets in mind. Betamax was more suitable for the consumer market utilizing small cassettes, while Betacam, on the other hand, had a larger cassette size to fit the broadcasting industry’s needs.

In the end, Betacam got a better standing because it was widely adopted by broadcast industries, giving it a longer lifespan.
